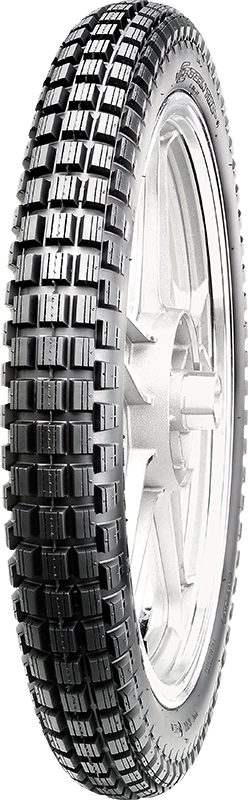

C186

  • Trials tires built for the ultimate grip
  • Tightly spaced knobs provide a large contact patch with many biting edges
  • Compliant, yet strong carcass for traction, stability and durability

C186

C186
C186
  • Trials tires built for the ultimate grip
  • Tightly spaced knobs provide a large contact patch with many biting edges
  • Compliant, yet strong carcass for traction, stability and durability

Specs


TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
19
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
2.50-19
2.50-19
1.60X19
4 / 41N TT
619.0 / 24.4
65 / 2.60
225 / 32
145 / 320
4.00 / 0.16
2.75-19
2.75-19
1.85X19
4 / 43P TT
639.0 / 25.2
75 / 3.00
225 / 32
155 / 340
7.50 / 0.30
14
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
2.75-14
2.75-14
1.85X14
4 / 35P TT
512.0 / 20.2
75 / 3.00
225 / 32
121 / 270
8.50 / 0.33
2.75-14
2.75-14
1.85X14
6 / 41P TT
512.0 / 20.2
75 / 3.00
280 / 40
145 / 320
8.50 / 0.33
16
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
3.00-16
3.00-16
1.85X16
4 / 43P TT
576.0 / 22.7
80 / 3.10
225 / 32
155 / 340
8.50 / 0.33
3.50-16
3.50-16
2.15X16
4 / 52P TT
598.0 / 23.5
93 / 3.70
225 / 32
200 / 440
7.50 / 0.30
17
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
3.00-17
3.00-17
1.85X17
4 / 45N TT
602.0 / 23.7
80 / 3.10
225 / 32
165 / 365
8.50 / 0.33
18
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
2.75-18
2.75-18
1.85X18
4 / 42P TT
613.0 / 24.1
75 / 3.00
225 / 32
150 / 330
7.50 / 0.30
2.75-18
2.75-18
1.85X18
6 / 48P TT
614.0 / 24.2
75 / 3.00
280 / 40
180 / 395
7.50 / 0.30
3.00-18
3.00-18
1.85X18
4 / 47P TT
630.0 / 24.8
80 / 3.10
225 / 32
175 / 385
8.50 / 0.33
3.00-18
3.00-18
1.85X18
8 / 55P TT
633.0 / 24.9
80 / 3.10
300 / 44
218 / 480
8.50 / 0.33
3.50-18
3.50-18
2.15X18
4 / 56P TT
654.0 / 25.7
93 / 3.70
225 / 32
224 / 495
8.50 / 0.33
21
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
2.75-21
2.75-21
1.85X21
4 / 45P TT
689.0 / 27.1
75 / 3.00
225 / 32
165 / 365
7.50 / 0.30
3.00-21
3.00-21
1.85X21
4 / 51P TT
703.0 / 27.7
80 / 3.10
225 / 32
195 / 430
8.50 / 0.33
