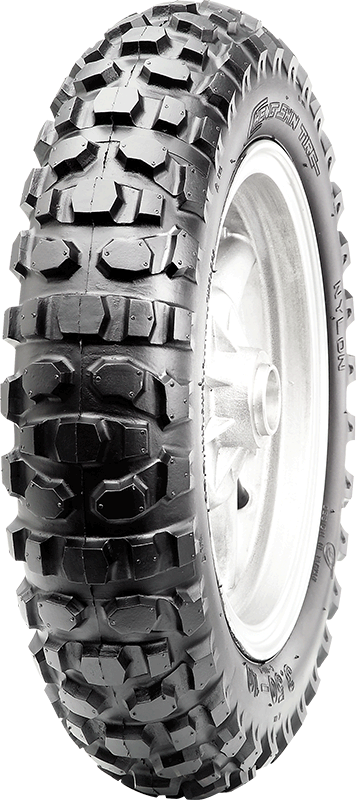

C803

  • Designed for traction on and off-road
  • Wide profile provides a large contact patch
  • Compound formulated for performance and longevity

C803

C803
C803
  • Designed for traction on and off-road
  • Wide profile provides a large contact patch
  • Compound formulated for performance and longevity

Specs


TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
14
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
2.50-14
2.50-14
1.60X14
4 / 32J TT
494.0 / 19.4
65 / 2.60
225 / 32
112 / 245
8.00 / 0.31
70/100-14
70/100-14
1.60X14
4 / 37J TT
496.0 / 19.5
69 / 2.70
225 / 32
128 / 282
8.30 / 0.33
12
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
80/100-12
80/100-12
1.85X12
4 / 50J TT
465.0 / 18.3
80 / 3.10
225 / 32
190 / 419
12.30 / 0.48
3.00-12
3.00-12
2.15X12
4 / 47J TT
474.0 / 18.7
80 / 3.10
250 / 36
175 / 392
12.00 / 0.47
10
TIRE SIZE
RIM SIZE (inch)
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (mm/in)
SECTION WIDTH (mm/in)
MAX PRESSURE (kPa/psi)
MAX LOAD (kg/lbs)
TREAD DEPTH (mm/in)
3.50-10
3.50-10
2.15X10
6 / 56J TL
437.0 / 17.2
93 / 3.70
280 / 40
224 / 494
9.00 / 0.35
