Sahara ATS

  • Optimized pattern design delivers even pressure distribution for a better footprint that gives the ATS outstanding handling, comfort and mileage compared with previous model
  • Semi-silica tread compound provides excellent wet traction and shortens wet braking distances
  • Highly rigid steel belts provide great stability for handing and safety
  • Special sidewall structure absorbs impact from road surfaces for much improved comfort
  • Innovative compound technology delivers longer tread wear

Features

  • Compared with the previous model, the ATS has wider tread and tire profile for better appearance and more mileage

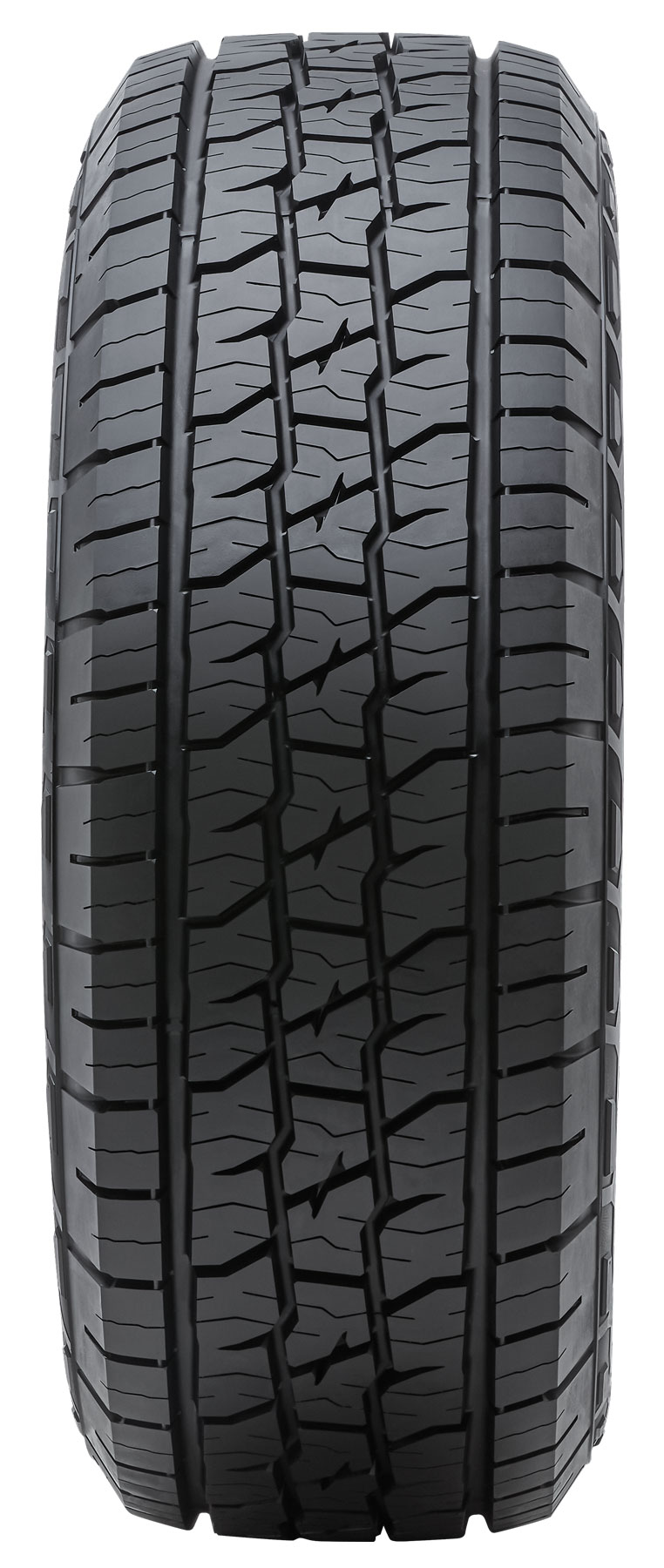

  • Four main vertical grooves offer outstanding water dispersal to prevent the risk of aquaplaning

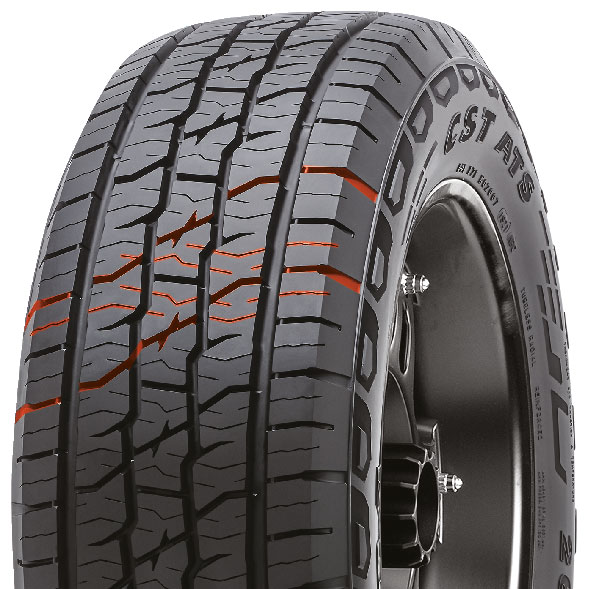

  • Extra lateral grooves and sipes enhance comfort for a great driving experience
  • Bridges and sipes in the shoulder’s grooves minimize noise and road surface impact for a quiet, comfortable ride

Sahara ATS

Sahara ATS
Sahara ATS
  • Optimized pattern design delivers even pressure distribution for a better footprint that gives the ATS outstanding handling, comfort and mileage compared with previous model
  • Semi-silica tread compound provides excellent wet traction and shortens wet braking distances
  • Highly rigid steel belts provide great stability for handing and safety
  • Special sidewall structure absorbs impact from road surfaces for much improved comfort
  • Innovative compound technology delivers longer tread wear

Features

  • Compared with the previous model, the ATS has wider tread and tire profile for better appearance and more mileage
  • Four main vertical grooves offer outstanding water dispersal to prevent the risk of aquaplaning
  • Extra lateral grooves and sipes enhance comfort for a great driving experience
  • Bridges and sipes in the shoulder’s grooves minimize noise and road surface impact for a quiet, comfortable ride

Specs


Part Number
Size
Sidewall
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
15
Part Number
Size
Sidewall
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
215/75R15
TP00321100
215/75R15
27.8
8.5
44
1764
5.5 / 6 / 7
12/32
235/75R15
TP00335500
235/75R15
28.9
9.4
50
2271
6 / 6.5 / 8
13/32
16
Part Number
Size
Sidewall
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
215/65R16
TP00351200
215/65R16
27
8.8
44
1653
6 / 6.5 / 7.5
12/32
235/70R16
TP00321200
235/70R16
29.2
9.4
50
2271
6 / 7 / 8
13/32
245/70R16
TP00320700
245/70R16
29.7
9.8
50
2403
6.5 / 7 / 8
13/32
255/70R16
TP00311300
255/70R16
30
10.4
44
2403
6.5 / 7.5 / 8.5
12/32
265/70R16
TP00320800
265/70R16
30.7
10.8
44
2469
7 / 8 / 9
13/32
17
Part Number
Size
Sidewall
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
225/60R17
TP00351300
225/60R17
27.7
8.8
50
1929
6 / 6.5 / 8
12/32
225/65R17
TP00336000
225/65R17
TBD
TBD
44
1874
6 / 6.5 / 8
TBD
245/65R17
TP00321300
245/65R17
29.5
9.6
50
2403
6.5 / 7 / 8.5
13/32
245/70R17
TP00321400
245/70R17
30.7
9.7
50
2601
6.5 / 7 / 8
13/32
265/65R17
TP00320900
265/65R17
30.5
10.8
44
2469
7.5 / 8 / 9.5
13/32
18
Part Number
Size
Sidewall
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
265/60R18
TP00321000
265/60R18
30.5
10.6
50
2601
7.5 / 8 / 9.5
13/32
