MEDALLION WINTER WCP1

The Medallion Winter WCP1 is CST’s ultimate winter passenger tire. Our winter compound combined with the specially designed 3D sipe pattern delivers optimal handling in the most extreme winter conditions. The widened V-shaped tread pattern improves water dispersion while enhancing snow traction, while the jigsaw style circumferential grooves ensure carcass stiffness and handling performance is maintained. Now you can go anywhere without worrying about the weather.


Features

  • Wide V-shape lateral grooves improves snow traction and water dispersion

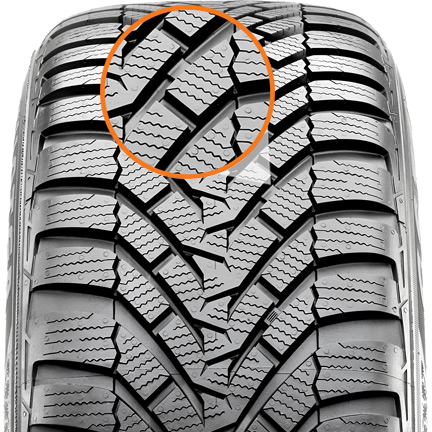

  • 3D zig-zag sipes increase the number of biting edges which improves grip for all road conditions

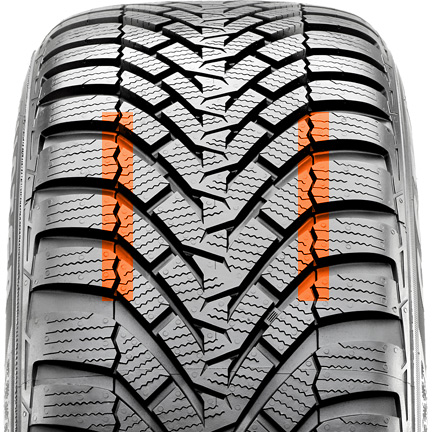

  • Longitudinal interlocking jigsaw pattern improves handling performance in winter conditions

MEDALLION WINTER WCP1

MEDALLION WINTER WCP1
MEDALLION WINTER WCP1

The Medallion Winter WCP1 is CST’s ultimate winter passenger tire. Our winter compound combined with the specially designed 3D sipe pattern delivers optimal handling in the most extreme winter conditions. The widened V-shaped tread pattern improves water dispersion while enhancing snow traction, while the jigsaw style circumferential grooves ensure carcass stiffness and handling performance is maintained. Now you can go anywhere without worrying about the weather.


Features

  • Wide V-shape lateral grooves improves snow traction and water dispersion
  • 3D zig-zag sipes increase the number of biting edges which improves grip for all road conditions
  • Longitudinal interlocking jigsaw pattern improves handling performance in winter conditions

Specs


Part #
Size
Serv. Desc.
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
13
Part #
Size
Serv. Desc.
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
155/65R13
TP00064400
155/65R13
73T
21.0
6.00
44
805
4.50 / 4.50 / 5.50
10/32
E
C
70
155/80R13
TP00079500
155/80R13
83T XL
22.8
6.20
50
1,074
4.00 / 4.50 / 5.00
9/32
E
C
70
155/70R13
TP00080000
155/70R13
75T
21.6
6.20
44
853
4.00 / 4.50 / 5.00
10/32
E
C
70
14
Part #
Size
Serv. Desc.
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
165/70R14
TP00079400
165/70R14
81T
23.1
6.60
44
1,019
4.00 / 5.00 / 5.50
10/32
E
C
70
185/60R14
TP00079600
185/60R14
82T
22.8
7.40
44
1,047
5.00 / 5.50 / 6.50
11/32
E
B
70
165/65R14
TP00079700
165/65R14
83T XL
22.5
6.60
50
1,074
4.50 / 5.00 / 6.00
10/32
E
C
70
165/65R14
TP00080900
165/65R14
79T
22.4
6.60
44
963
4.50 / 5.00 / 6.00
10/32
E
C
70
175/65R14
TP00082300
175/65R14
82T
23.1
6.80
44
1,047
5.00 / 5.00 / 6.00
10/32
E
B
70
185/65R14
TP00082600
185/65R14
86T
23.4
7.40
44
1,167
5.00 / 5.50 / 6.50
11/32
E
B
70
175/70R14
TP00090000
175/70R14
88T XL
23.9
6.90
50
1,235
4.50 / 5.00 / 6.00
10/32
E
B
70
155/65R14
TP00090200
155/65R14
75T
22.1
6.10
44
853
4.50 / 4.50 / 5.50
10/32
E
C
70
15
Part #
Size
Serv. Desc.
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
195/65R15
TP00073400
195/65R15
91T
25.0
7.90
44
1,356
5.50 / 6.00 / 7.00
11/32
E
B
70
185/65R15
TP00081000
185/65R15
88T
24.4
7.30
44
1,235
5.00 / 5.50 / 6.50
11/32
E
B
70
175/65R15
TP00081300
175/65R15
88H XL
24.0
6.90
50
1,235
5.00 / 5.00 / 6.00
10/32
E
B
70
185/55R15
TP00081400
185/55R15
86H XL
23.0
7.70
44
1,047
5.00 / 6.00 / 6.50
10/32
E
B
70
185/60R15
TP00100300
185/60R15
88H XL
23.8
7.30
50
1,235
5.00 / 5.50 / 6.50
11/32
E
B
70
195/60R15
TP00100400
195/60R15
88H
24.3
7.90
44
1,235
5.50 / 6.00 / 7.00
11/32
E
B
70
195/55R15
TP00150500
195/55R15
89H
23.3
8.00
50
1,279
5.50 / 6.00 / 6.50
11/32
E
B
70
175/60R15
TP00157300
175/60R15
81T
23.3
6.90
44
1,019
5.00 / 5.50 / 6.00
10/32
E
B
70
16
Part #
Size
Serv. Desc.
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
205/55R16
TP00012700
205/55R16
91H
24.8
8.30
44
1,356
5.50 / 6.50 / 7.50
11/32
E
B
70
225/55R16
TP00055300
225/55R16
99H XL
25.7
9.20
50
1,709
6.00 / 7.00 / 8.00
11/32
C
B
72
195/55R16
TP00105400
195/55R16
91V
24.4
7.80
50
1,356
5.50 / 6.00 / 6.50
10/32
E
B
70
195/45R16
TP00150300
195/45R16
84V
22.9
7.60
50
1,102
6.50 / 6.50 / 7.00
10/32
E
B
70
205/60R16
TP00153600
205/60R16
96V
25.7
8.20
50
1,565
5.50 / 6.00 / 6.50
10/32
E
B
70
215/55R16
TP00153700
215/55R16
97V
25.2
8.90
50
1,609
6.50 / 7.00 / 7.50
11/32
E
B
70
215/65R16
TP00154900
215/65R16
102V
27.1
8.70
50
1,874
6.00 / 6.50 / 7.00
11/32
E
B
70
215/60R16
TP00155400
215/60R16
99V
26.2
8.70
50
1,709
6.00 / 6.50 / 7.00
11/32
C
B
70
17
Part #
Size
Serv. Desc.
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
205/55R17
TP00150200
205/55R17
95V
25.9
8.30
50
1,521
6.50 / 6.50 / 7.00
10/32
E
B
70
225/45R17
TP00157100
225/45R17
94V
25.0
8.80
50
1,477
7.00 / 7.50 / 8.00
11/32
E
B
70
215/40R17
TP00157200
215/40R17
87V
23.8
8.60
50
1,201
7.00 / 7.50 / 8.00
10/32
E
B
70
215/45R17
TP00157400
215/45R17
91V
24.7
8.40
50
1,356
/ 7.00 / 7.50
11/32
E
B
70
205/50R17
TP00164400
205/50R17
93V
25.1
8.40
50
1,433
6.50 / 6.50 / 7.00
10/32
E
B
70
225/50R17
TP00168500
225/50R17
98V
25.9
9.10
50
1,653
6.50 / 7.00 / 7.50
11/32
E
B
70
235/50R17
TP00214300
235/50R17
100V
26.3
9.70
50
1,764
7.00 / 7.50 / 8.00
11/32
E
B
70
235/55R17
TP00214400
235/55R17
103V
27.1
9.70
50
1,920
7.00 / 7.50 / 8.00
11/32
C
B
70
18
Part #
Size
Serv. Desc.
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
245/40R18
TP00123200
245/40R18
97V
25.0
9.10
50
1,389
7.50 / 8.00 / 8.50
11/32
E
B
70
225/40R18
TP00163900
225/40R18
92V
25.0
9.10
50
1,389
7.50 / 8.00 / 8.50
11/32
E
B
70
245/45R18
TP00217200
245/45R18
100V
26.6
9.60
50
1,764
7.50 / 8.00 / 8.50
11/32
E
B
70
225/45ZR18
TP00217300
225/45ZR18
95W
26.0
8.80
50
1,521
7.00 / 7.50 / 8.00
11/32
E
B
70
225/50R18
TP00217400
225/50R18
99V
27.0
9.10
50
1,709
6.50 / 7.00 / 7.50
11/32
E
B
70
235/50R18
TP00217500
235/50R18
101V
27.2
9.70
50
1,819
7.00 / 7.50 / 8.00
11/32
E
B
70
235/55ZR18
TP00217600
235/55ZR18
104W
28.1
9.70
50
1,984
7.00 / 7.50 / 8.00
11/32
C
B
70
225/40ZR18
TP00249600
225/40ZR18
92W
25.0
9.10
50
1,389
7.50 / 8.00 / 8.50
11/32
E
B
70
245/40ZR18
TP00249800
245/40ZR18
97W
25.7
9.70
50
1,609
8.00 / 8.50 / 9.00
11/32
E
B
70
245/45ZR18
TP00250000
245/45ZR18
100W
26.6
9.60
50
1,764
7.50 / 8.00 / 8.50
11/32
C
B
70
19
Part #
Size
Serv. Desc.
Overall Diameter (in)
Section Width (in)
Max PSI
Max Load (lbs)
Rim Width Range (in)
Tread Depth (in)
Rolling Resistance
Wet Grip
Noise
235/55ZR19
TP00214900
235/55ZR19
105W
29.1
9.70
50
2,039
7.00 / 7.50 / 8.00
11/32
C
B
70
