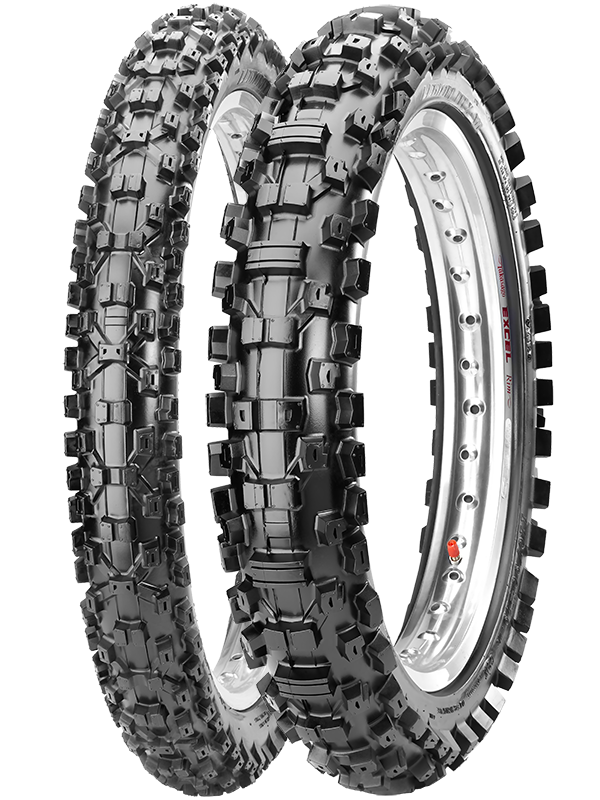

LEGION MX-VI CM702, CM703

Join forces with CST and ride the new Legion MX-VI!

  • The Legion MX-VI features an innovative tread pattern designed for dominance on the motocross battlefield
  • Long, varied tread pitches ensure that the tire hooks up in the variety of soil conditions found on a typical intermediate MX track
  • Optimized tire profile provides a smooth transition to the shoulder through turns
  • Advanced carcass construction virtually eliminates tire roll in corners

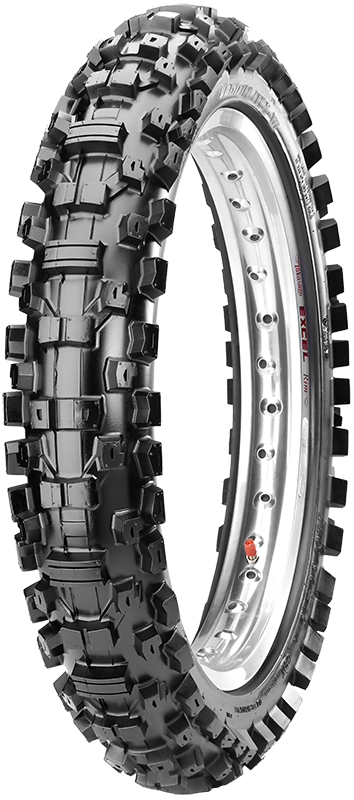

  • Center tread knobs on the rear tire claw forward and clean out, while more tightly spaced shoulder knobs provide a stable platform for traction when leaned over

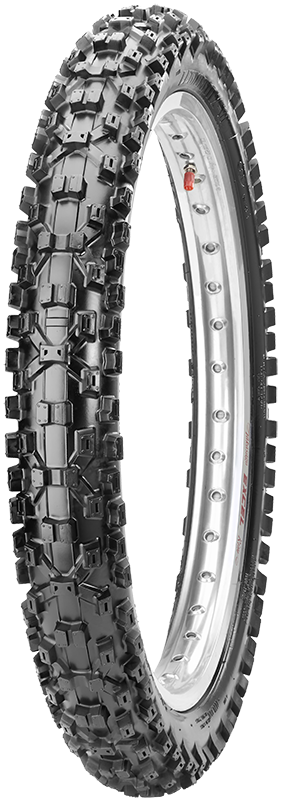

  • Uniquely shaped shoulder knobs on the front deliver extreme braking traction and control into and around corners

LEGION MX-VI CM702, CM703

LEGION MX-VI CM702, CM703
LEGION MX-VI CM702, CM703

Join forces with CST and ride the new Legion MX-VI!

  • The Legion MX-VI features an innovative tread pattern designed for dominance on the motocross battlefield
  • Long, varied tread pitches ensure that the tire hooks up in the variety of soil conditions found on a typical intermediate MX track
  • Optimized tire profile provides a smooth transition to the shoulder through turns
  • Advanced carcass construction virtually eliminates tire roll in corners
  • Center tread knobs on the rear tire claw forward and clean out, while more tightly spaced shoulder knobs provide a stable platform for traction when leaned over
  • Uniquely shaped shoulder knobs on the front deliver extreme braking traction and control into and around corners

Specs


TIRE SIZE
POSITION
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (in)
SECTION WIDTH (in)
RIM SIZE (inch)
TREAD DEPTH (in)
12
TIRE SIZE
POSITION
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (in)
SECTION WIDTH (in)
RIM SIZE (inch)
TREAD DEPTH (in)
80/100-12
80/100-12
Rear
/ 47M TT
18.6
3.15
1.85X12
15/32
14
TIRE SIZE
POSITION
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (in)
SECTION WIDTH (in)
RIM SIZE (inch)
TREAD DEPTH (in)
60/100-14
60/100-14
Front
/ 29M TT
19.0
2.36
1.4X14
12/32
90/100-14
90/100-14
Rear
/ 49M TT
21.5
3.54
2.15X14
16/32
17
TIRE SIZE
POSITION
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (in)
SECTION WIDTH (in)
RIM SIZE (inch)
TREAD DEPTH (in)
70/100-17
70/100-17
Front
/ 40M TT
22.8
2.72
1.6X17
13/32
19
TIRE SIZE
POSITION
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (in)
SECTION WIDTH (in)
RIM SIZE (inch)
TREAD DEPTH (in)
70/100-19
70/100-19
Front
/ 42M TT
24.8
2.72
1.6X19
13/32
100/90-19
100/90-19
Rear
/ 57M TT
26.5
3.98
2.5X19
20/32
110/80-19
110/80-19
Rear
/ 59M TT
26.3
4.29
2.5X19
20/32
120/80-19
120/80-19
Rear
/ 63M TT
27.0
4.69
2.75X19
20/32
110/90-19
110/90-19
Rear
4 / 62M TT
27.1
4.09
2.50X19
19/32
21
TIRE SIZE
POSITION
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (in)
SECTION WIDTH (in)
RIM SIZE (inch)
TREAD DEPTH (in)
80/100-21
80/100-21
Front
4 / 51M TT
28.0
2.95
1.85X21
14/32
90/100-21
90/100-21
Front
/ 57M TT
28.4
3.54
2.15X21
15/32
16
TIRE SIZE
POSITION
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (in)
SECTION WIDTH (in)
RIM SIZE (inch)
TREAD DEPTH (in)
90/100-16
90/100-16
Rear
/ 50M TT
23.4
3.54
2.15X16
17/32
18
TIRE SIZE
POSITION
PLY RATING/ LOAD SPEED RATING
OVERALL DIAMETER (in)
SECTION WIDTH (in)
RIM SIZE (inch)
TREAD DEPTH (in)
100/100-18
100/100-18
Rear
/ 59M TT
26.3
3.98
2.5X18
20/32
110/100-18
110/100-18
Rear
/ 64M TT
27.1
4.29
2.50X18
21/32
