C9313, C9314

DesertHard PackIntermediateMudSoft

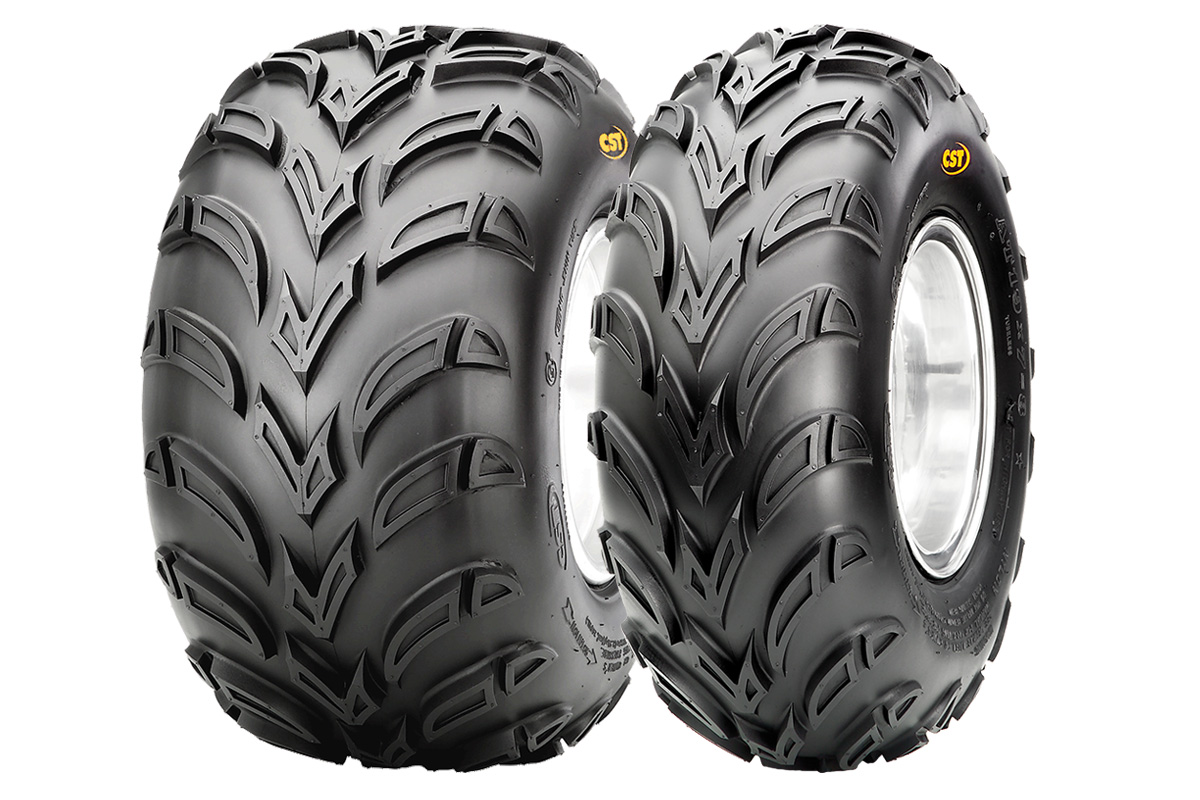

If you regularly find yourself is muddy conditions the C9313 & C9314 from CST could be just the tire for your ATV. This front-only utility tire has deep, widely spaced tread bars that shed mud quickly to ensure you always get as much tread on the ground as possible. This tire is available in 2-ply and 4-ply ratings.




Features

  • Deep, widely spaced tread bars shed mud
  • Utility ATV tire available in 2-ply and 4-ply ratings

C9313, C9314

DesertHard PackIntermediateMudSoft
C9313, C9314
C9313, C9314

If you regularly find yourself is muddy conditions the C9313 & C9314 from CST could be just the tire for your ATV. This front-only utility tire has deep, widely spaced tread bars that shed mud quickly to ensure you always get as much tread on the ground as possible. This tire is available in 2-ply and 4-ply ratings.




Features

  • Deep, widely spaced tread bars shed mud
  • Utility ATV tire available in 2-ply and 4-ply ratings

Specs


Tire Size
Position
Rim Size (inch)
Ply Rating
Overall Diameter (in)
Section Width (in)
Tire Pressure (psi)
Max Load (lbs)
Tread Depth (in)
8
Tire Size
Position
Rim Size (inch)
Ply Rating
Overall Diameter (in)
Section Width (in)
Tire Pressure (psi)
Max Load (lbs)
Tread Depth (in)
AT19X7-8
AT19X7-8
Front
8X5.5
2
19
7
4
140
13/32
AT18X9.5-8
AT18X9.5-8
Rear
8X7
2
18
9.3
4
175
15/32
10
Tire Size
Position
Rim Size (inch)
Ply Rating
Overall Diameter (in)
Section Width (in)
Tire Pressure (psi)
Max Load (lbs)
Tread Depth (in)
AT22X10-10
AT22X10-10
Rear
10X8
4
22
9.8
5
300
19/32
AT22X7-10
AT22X7-10
Front
10X5.5
4
22
7
5
220
15/32
12
Tire Size
Position
Rim Size (inch)
Ply Rating
Overall Diameter (in)
Section Width (in)
Tire Pressure (psi)
Max Load (lbs)
Tread Depth (in)
AT25X8-12
AT25X8-12
Front
12X6.5
4
25
8
5
310
23/32
AT25X8-12
AT25X8-12
Front
12X6.5
6
25
8
7
340
23/32
AT25X10-12
AT25X10-12
Rear
12X8
4
25
10.2
5
385
24/32
AT25X10-12
AT25X10-12
Rear
12X8
6
25
10.2
7
420
24/32
